Model
|
ZJ10/900Z
|
ZJ15/1350Z
|
ZJ20/1580Z
|
ZJ30/1800Z
|
ZJ40/2250Z
|
|
Max Hook Load (kN)
|
900
|
1350
|
1580(1600)
|
(*1700)1800
|
2250(*2500)
|
|
Nominal Drilling Depth(114mm)m
|
500~1000
|
800~1500
|
1200~2000
|
1600~3000
|
2500~4000
|
|
Drawworks Power (kW)
|
261
|
403
|
470
|
403×2
|
470×2
|
|
Lines
|
6
|
8
|
8
|
8,10
|
8,10
|
|
Wire line Dia (mm)
|
26
|
26
|
29
|
32
|
32
|
|
Mast height (m)
|
29,31
|
33,35
|
35,36
|
36,38,41
|
38,39,41,43
|
|
Max hook speed (m/s)
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Substructure height (m)
|
4
|
4.5,5,6
|
4.5,5,6
|
6,7,7.5
|
6,7,7.5
|
|
RT Hole Dia.(mm)
|
444.5
|
444.5
|
444.5,520.7
|
520.7,698.5
|
698.5
|
|
Main Brake
|
band and disc brake
|
band and disc brake
|
band and disc brake
|
band and disc brake
|
band and disc brake
|
|
Auxiliary brake
|
224WCB
|
224WCB
|
224WCB
|
324WCB
|
236WCB,dynamic braking
|
|
Carrier Model
|
XD40/8×6
|
XD50/10×8
|
XD60/12×8
|
XD70/14×8
|
XD70/14×8,XD80/16×10
|
|
Min ground clearance mm
|
311
|
311
|
311
|
311
|
|
|
Min diameter of turning circle m
|
28
|
33
|
36
|
41
|
41
|

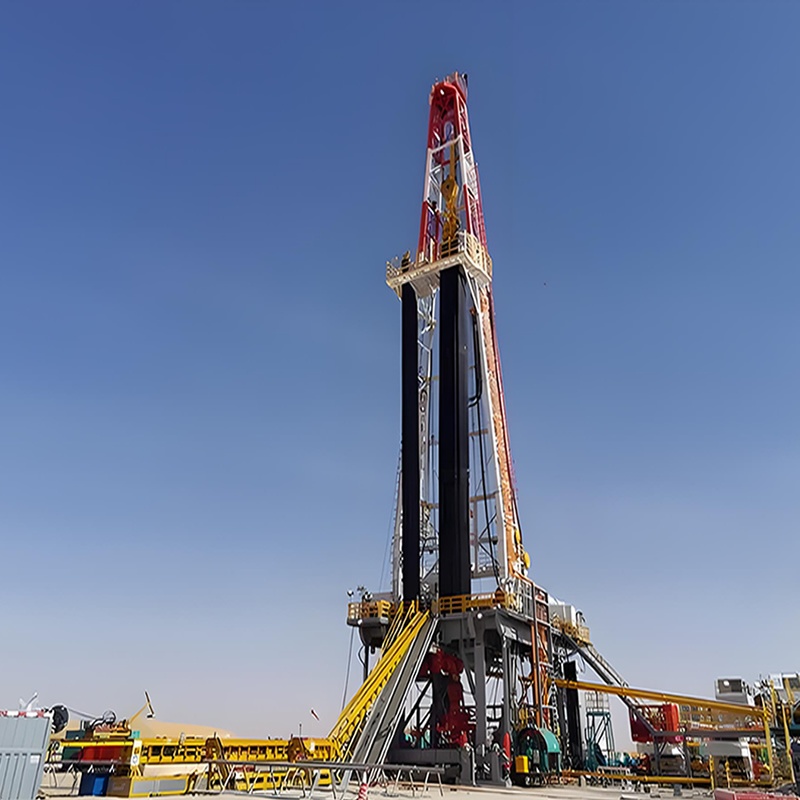

Drilling rig
