The basic material is usually AISI 4130 Alloy Steel or AISI410 Stainless Steel.
Overlays like SS 316L or Inconel 625 on ring groove can be incorporated for corrosion resistance.

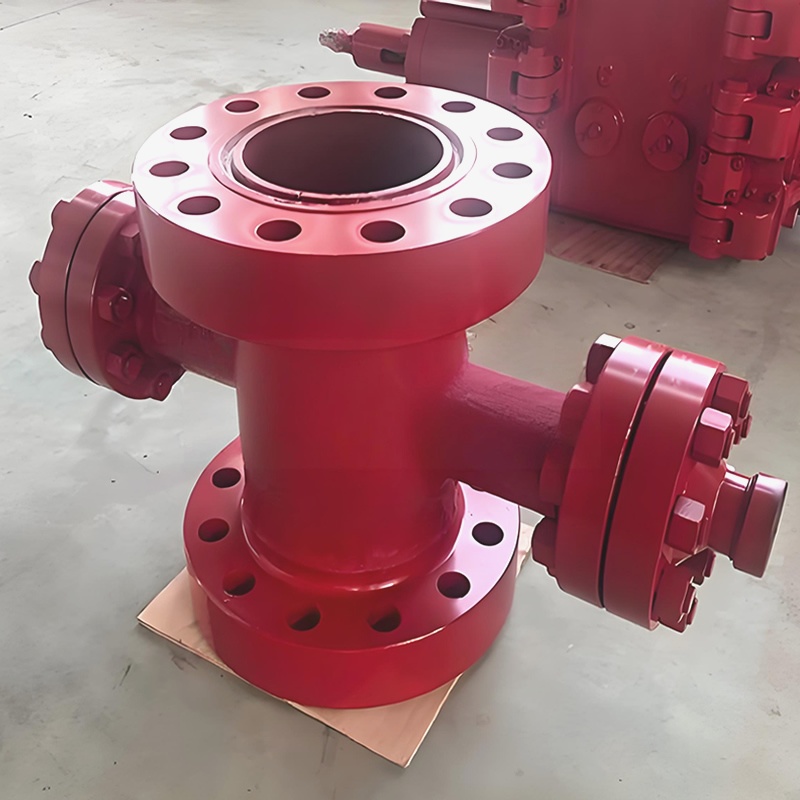

Studded/Flanged crosses and tees shall undergo hydrostatic body test and drift test as per API 6A standards prior to delivery.
Custom sizes and specifications are available upon request.
Simple structure with reliable performance.
Standard Carried: API Spec 6A, NACE-MR0175
Nominal Bore: 2 1/16 in, 2 9/16 in, 3 1/8 in, 3 1/16 in, 4 1/16 in
Rated Working Pressure: 2000 psi ~ 20000 psi (14Mpa ~ 140Mpa)
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI4130 Alloy or AISI410 Stainless Steel
Connection Type: Flanged or Studded
Temp Class: L, P, R, S, T, U, V
Product Specification Level: PSL1 – PSL4
Performance Requirement: PR1, PR2
Application: Wellhead Assembly & Christmas Tree
