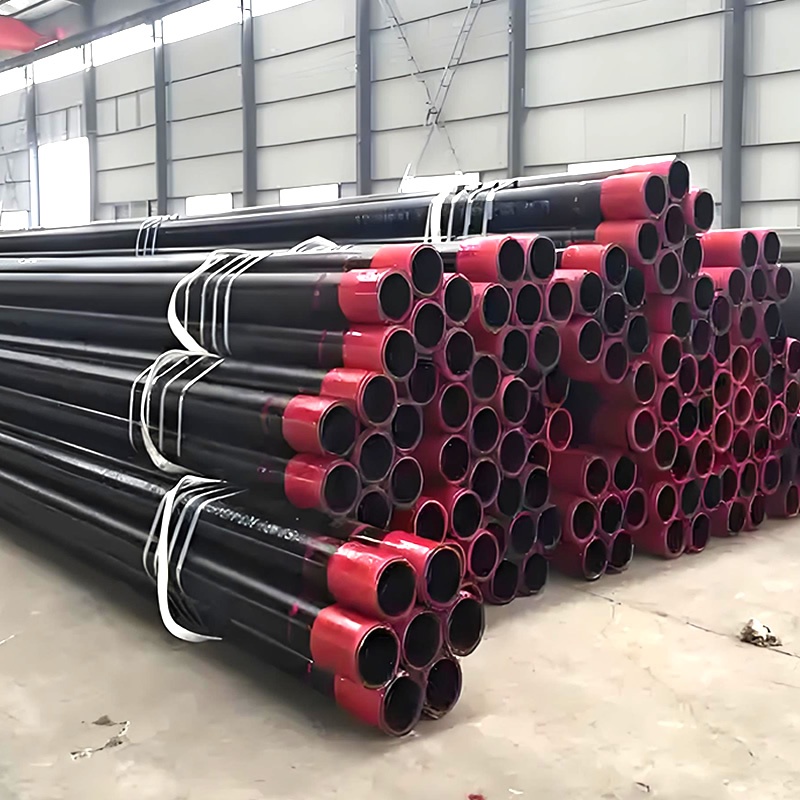

Casing Pipe

Casing Pipe
Designed and manufactured according to 5CT and 5B. Steel grade: H40, J55, K55, L80, N80/Q, C90, T95, P110,
Thread connection: BTC, STC, LTC.
Length: R2, R3, also customized.
Processing: Seamless and welding.

API 5ct casing pipe
1.Grades:J55,K55,N80,L80
2.OD:from 2-3/8"-13-3/8"
3.WT:from4.83mm to13.06mm
4. Length range:R2 R3

Technology parameter

Size	Outside Diameter		Inside Diameter		Grade	Wall Thickness
Size	in	mm	in	mm	Grade	in	mm
4-1/2	4.500	114.30	4.000	101.60	J55K55N80	0.250	6.35
4-1/2	4.500	114.30	3.920	99.57	J55K55N80	0.290	7.37
5	5.000	127.00	4.408	111.96	J55K55N80	0.296	7.52
			4.276	108.61	N80P110	0.362	9.29
			4.126	104.80	N80P110	0.437	11.10
5-1/2	5.500	139.70	4.892	124.26	J55K55N80	0.304	7.72
			4.778	121.36	N80	0.361	9.17
			4.670	118.62	N80	0.415	10.54
7	7.000	177.80	6.366	161.70	J55K55N80	0.317	8.05
			6.276	159.41	J55K55N80	0.362	9.19
			6.184	157.07	N80	0.408	10.36
9-5/8	9.625	244.48	8.755	222.38	N80	0.435	11.05
9-5/8	9.625	244.48	8.681	222.50	N80	0.472	11.99
10-3/4	10.750	273.05	10.050	255.27	H40 J55K55N80	0.350	8.89
10-3/4	10.750	273.05	9.850	250.19	J55K55N80	0.450	11.43
13-3/8	13.375	339.72	12.615	320.42	J55K55	0.380	9.65
13-3/8	13.375	339.72	12.415	315.34	J55K55N80	0.480	12.19
