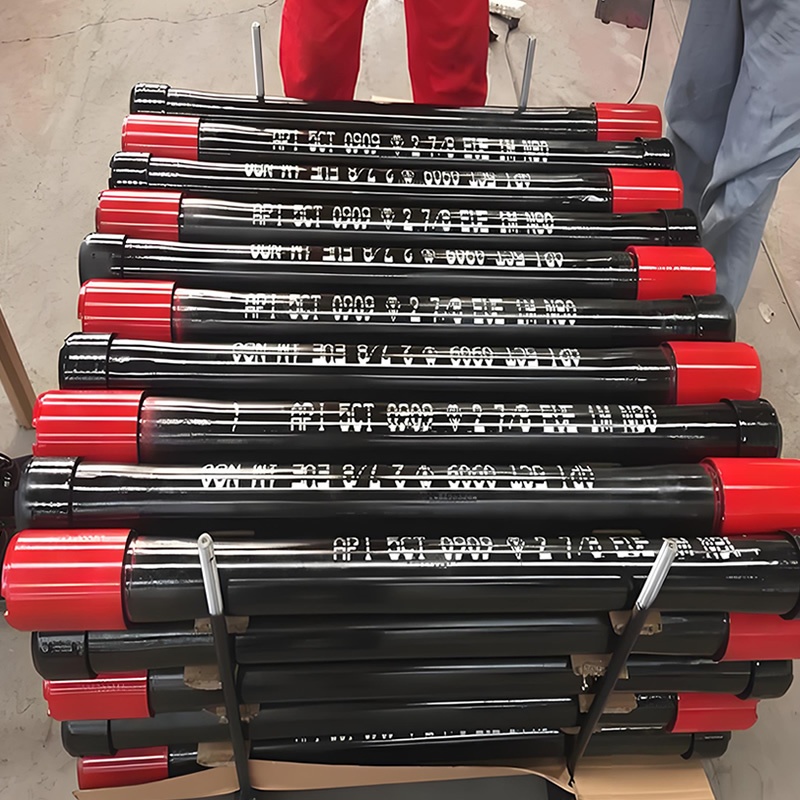

Designed and manufactured according to API spec 5CT and API 5B.
All standard lengths (2′, 3′, 4′, 5′, 6′, 8′, 10′ or 12′), but any length can be specified.
The same performance with casing/tubing.
Available in API and proprietary steel grades: H40, J55, K55, L80, N80/Q, C90, T95, P110,
Available in API thread: EUE, NUE for tubing, BTC, STC, LTC for casing.
Processing: Seamless.
| Tubing Pup Joint Specifications | |
| Outside Diameter | 1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD |
| Weight | Standard or Heavy Wall |
| Length | 2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request) |
| Grade | H40, J55, L80, N80/Q, C90, T95, P110 |
| Connection | EUE, NUE |
| Standard | API 5CT, API 5B |
| Casing Pup Joint Specifications | |
| Outside Diameter | 4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD |
| Weight | Standard or Heavy Wall |
| Length | 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request) |
| Grade | H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125 |
| Connection | BTC, STC, LTC |
| Standard | API 5CT, API 5B |
