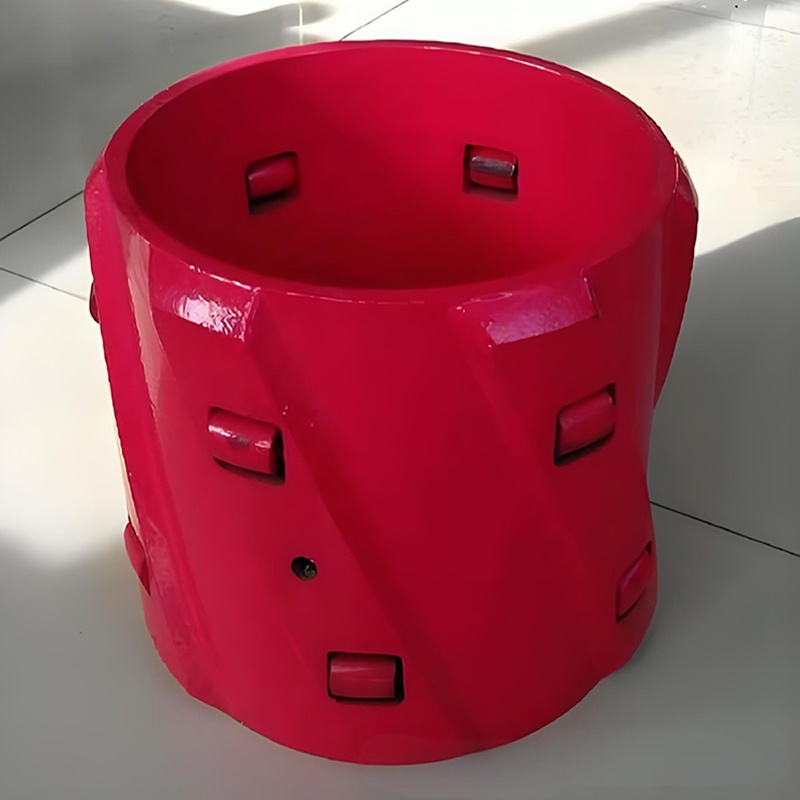

Thermoplastic Centralizer
Designed for extreme wellbore conditions
|
Product name: casing centralizer Composite Centralizer(PA66+GF30) Product classification: Spring centralizer, Rigid centralizer, Composite centralizer with and without roller |
Applications
• Vertical, deviated, and horizontal wells.
• Extended-reach wells and wells with high dogleg severity.
• Wells with temperatures up to 175°C.
Description
|
Productn Name
|
API cementing equipment rigid centralizer casing centralizer price
|
|
Outer diameter
|
4-1/2" - 20"
|
|
Standard
|
API 10D
|
|
Tpye
|
Bow Spring Centralizer (slip-on one piece type, hinged non-welded type, hinged welded type slip-on welded type; single bow, double bow)
Rigid Centralizer (roller centralizer, spiral blade type, straight blade type) |
|
Material
|
cast steel, cast aluminum, nylon, polymer, etc.
|
|
MOQ
|
20 pcs
|
|
Packing
|
pallets or wood cases
|
|
Surface
|
powder baking or paint baking
|
|
Trade terms
|
FOB,FCA, CFR, CIF, CPT, EXW etc.
|
|
Payment
|
T/T, L/C, etc.
|
|
Delivery time
|
20 ~ 30 days after receipt of deposit, ASAP
|
|
Loading Port
|
QingDao, TianJin, ShangHai port, China
|
Designed with a smooth and tapered construction, the composite centralizer effortlessly navigates obstructions within the wellbore, making it particularly suitable for horizontal applications. Its unique design facilitates efficient casing string advancement to reach total depth. Furthermore, it effectively creates optimal standoff for mud displacement, significantly improving cementing operations. The composite centralizer is available in both straight and spiral blade configurations, offering versatility and accommodating various wellbore requirements.
Specification:
| Size(inch) | Inner Diameter(mm) | Outer Diameter(mm) | Height(mm) |
| 13-3/8 | 343 | 400 | 130 |
| 10-3/4 | 276 | 308 | 120 |
| 9-5/8 | 247 | 308 | 120 |
| 7-5/8 | 197 | 243 | 120 |
| 7 | 180 | 212 | 120 |
| 5-1/2 | 143 | 213 | 120 |
| 5 | 130 | 151 | 120 |
| 4-1/2 | 117 | 148 | 100 |
| 4 | 104 | 118 |
80 |
